1.1 About this Document
SMART CATALOG application is a dedicated application for viewing multimedia contents created and delivered by the SMART CATALOG content management system on iPad/iPhone.
This document explains how to use the SMART CATALOG application.
Memo
The layout and mode of operation of the iPhone and the iPad differ in some respects, but the explanations in this document are premised on using the iPad.
▼ Definitions for the badges to the right of titles and explanations：Indicates that the function is not usable with the iPhone.
：The mark indicates that the respective function is available only for users who signed up for the respective option.
1.2 SMART CATALOG Application

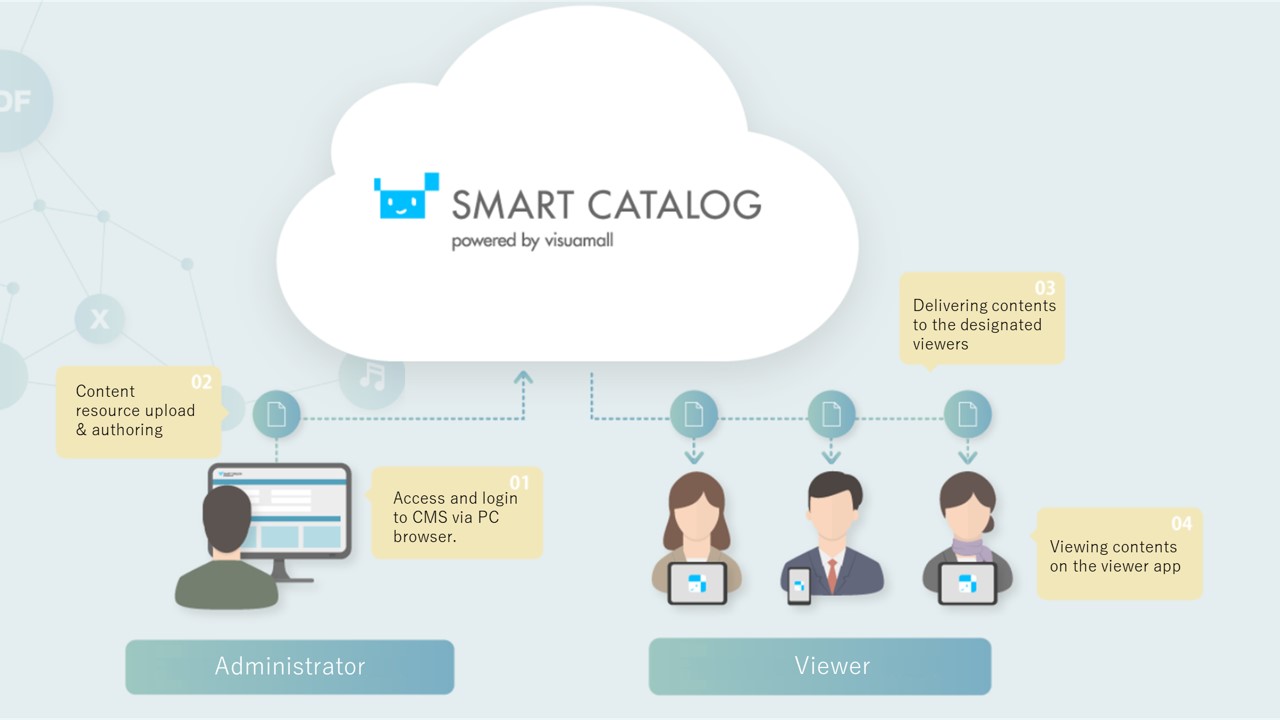

SMART CATALOG application is a dedicated application for viewing, watching, and listening to multimedia contents created and delivered by the SMART CATALOG content management system on iPad/iPhone. It enables presentations using visual graphics that Smart device can provide.
1.3 Before You Begin
To use the SMART CATALOG application, the following environment is necessary.
| OS*1 | iPad | iOS/iPadOS 16 or later |
| iPhone | ||
| Free Space | 3 GB min. | |
| Network environment | Wi-Fi environment or 3G/4G/LTE network environment. Note : Used to check new contents and download contents. |
|
*1：Click here for the latest supported version.
| ●Login account information | |
|---|---|
| Region<AppStoreEdition> | Regions where a server to be connected is available |
| Login ID | User account ID |
| Password | Password for the user account |
| Account Path <AppStoreEdition> | Identifier of use environment (company ID) |
| URL of the site to download the application<inHouseEdition> | URL for downloading the inHouseEdition application. |
▼Regarding external video output
You can use contents while outputting images to a projector or monitor by connecting the device with a cable for outputting images.
Image output (mirroring) is always used for the video output method.
1.4 Operation Flow

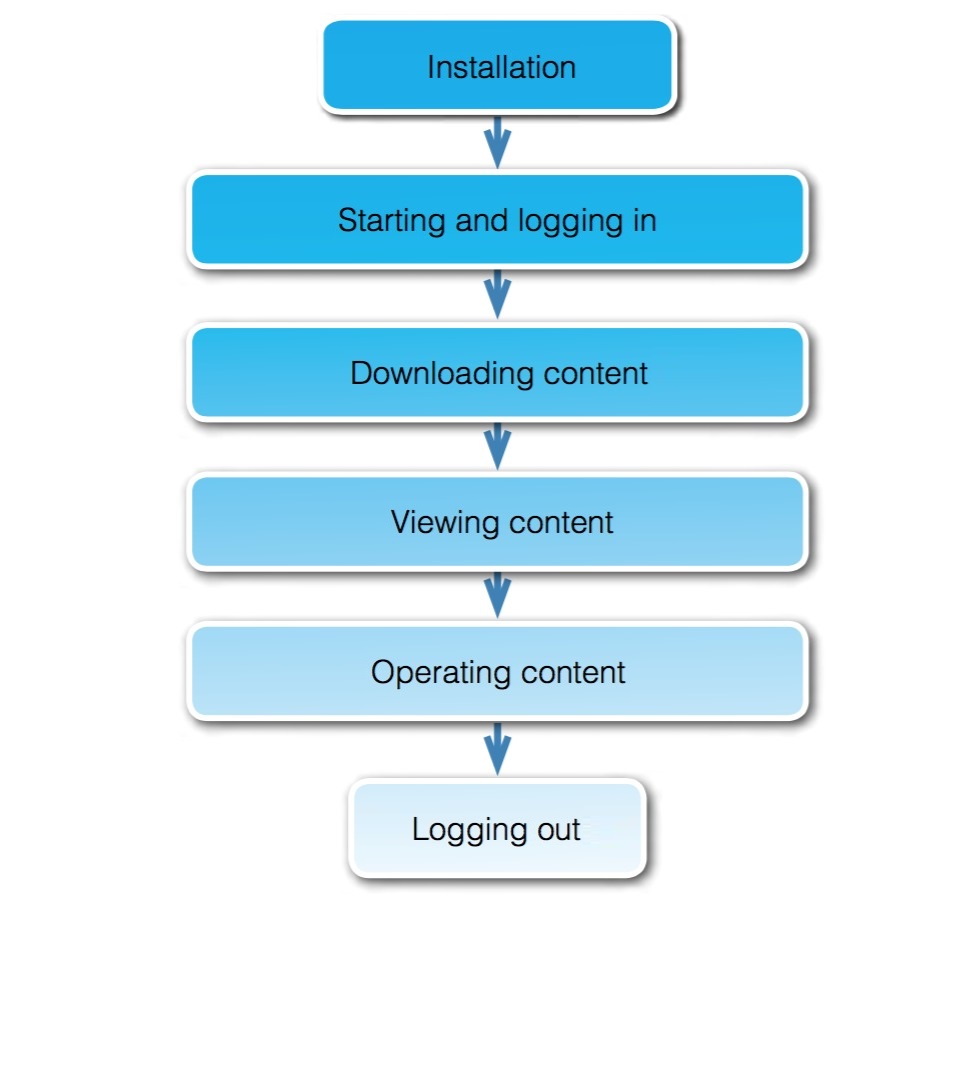

Below is a flow chart for operating the SMART CATALOG application.
